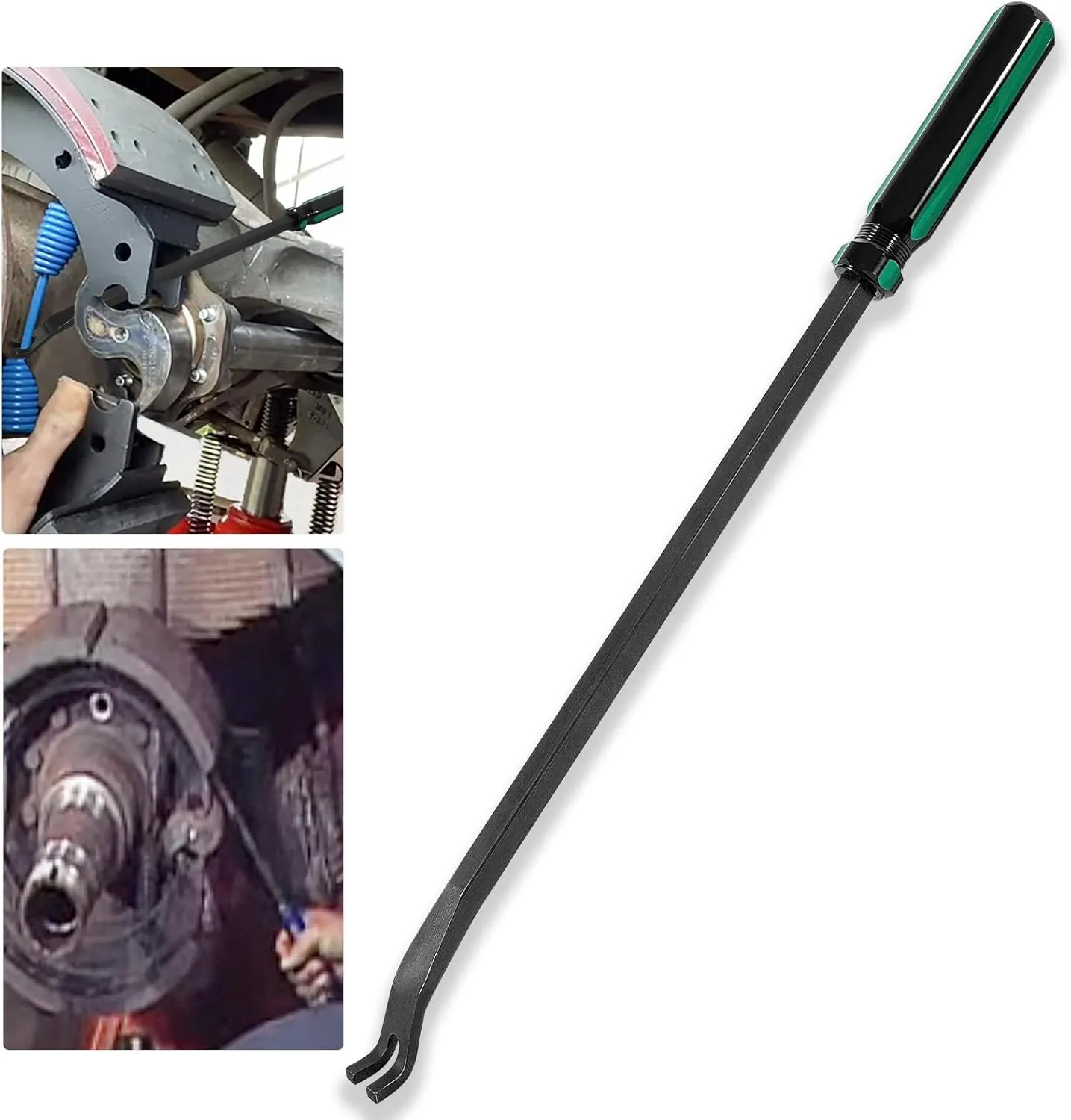

- FUNCTION：This tool is used to install and remove retum springs on commercial trucks and trailers.Unique design cups the return spring to stop it from sliding off and possible injury. The return spring can be removed and installed safely, quickly and easily.
- EASY TO USE：Rotate the S cam - insure that the cam is rotated to seat the rollers are in the lowest position. Slide the Brake Return Spring Tool between the shoe webs over the top roller and hook the top of the return spring below the coil. Push down on the handle and unhook the spring from the pin by pulling back or pushing forward on the handle depending on the direction of the spring opening.
- HIGH QUALITY ： machined from high quality steel and coated with black powder to prevent oxidation and rust and ensure unrivalled long life, extra long handle provides excellent stability.
- NOTE:It Is Nota General Purpose Pry Bar. Do Not Attempt To Rotate The Cam Backwards With Auto Slacks Without Releasing The Pawl.
lnstallation:
–Install both the roller and the roller retainers in both shoes.
– Install the return spring pins if required.
– Install the top shoe - insure that the cam is rotated to seat the roller in the lowest position.
– Hang the anchor springs from the top shoe.
– Attach the lower shoe, with the anchor springs, and then rotate the lower shoe into position.
– Install the retum spring on the lower shoe with the upper spring opening facing the roller.
– Slide the Brake Return Spring Tool between the shoe webs over the top roller and hook the top of the return spring below the upper coil.
– Push down on the handle and hook the spring over the pin by pulling back on the handle.
